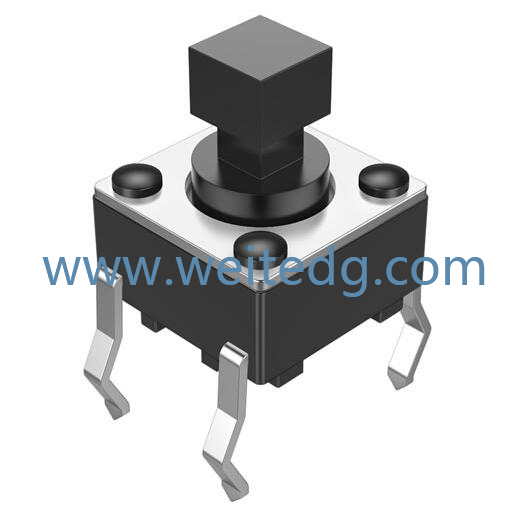

名稱：TVDP01-G73
詳細信息
系列： TVDP01-G73
特點： Top push
尺寸： 6.0X6.0mm
產品分類： 輕觸開關 - D系列 / 6x6
Applications |
| ※ Operating switches in all types of electronic equipment such as audio devices, office devices, communication devices,measuring instruments, TVs, video recorders, automotive sets,etc. |
Features |
| ※ Snap-in type, which can be directly mounted on PC board. |
| ※ Some of output terminals can be also used as jumper leads, thus making circuit design easy. |
| ※ Available with anti-ESD ground terminal. |
| ※ Standard knobs are available |

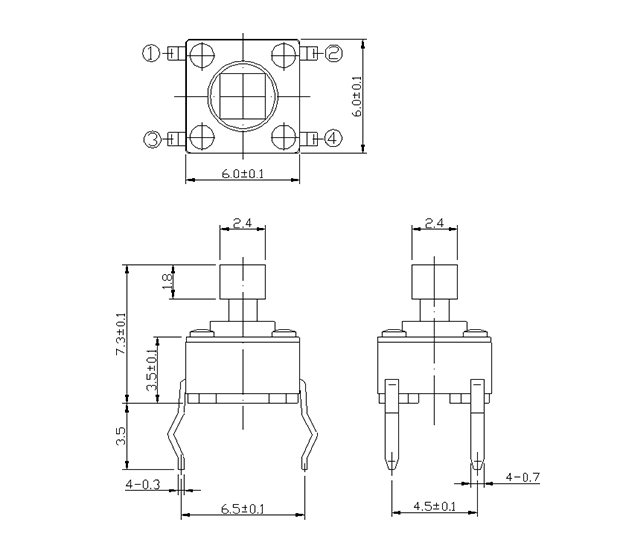

Dimensions |

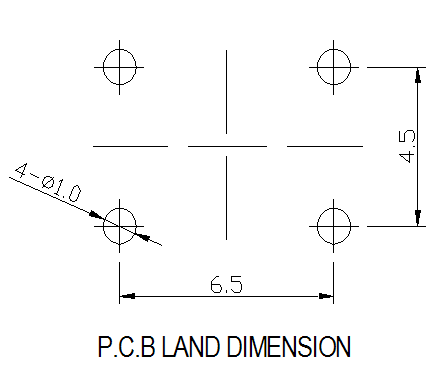

PCB layout

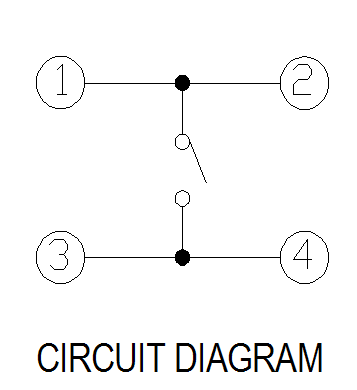

Circuit diagram

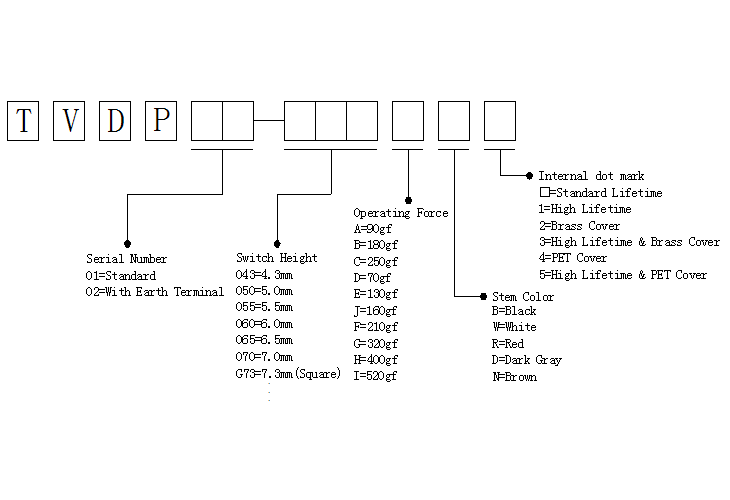

HOW TO ORDER
PRODUCT LINE
PART NO.
TYPE
Operating force
Operating direction
travel
Operating ife
Initial contact resistance
Stem height
TVDP01-G73BN1
Snap-in
180gf
Top push
0.25
100,000 cycles
500mN max
0.73mm
Package
BULK：1KPCS/BULK
