輕觸開關(guān)

名稱：TVCM01

詳細信息

系列： TVCM01

特點：

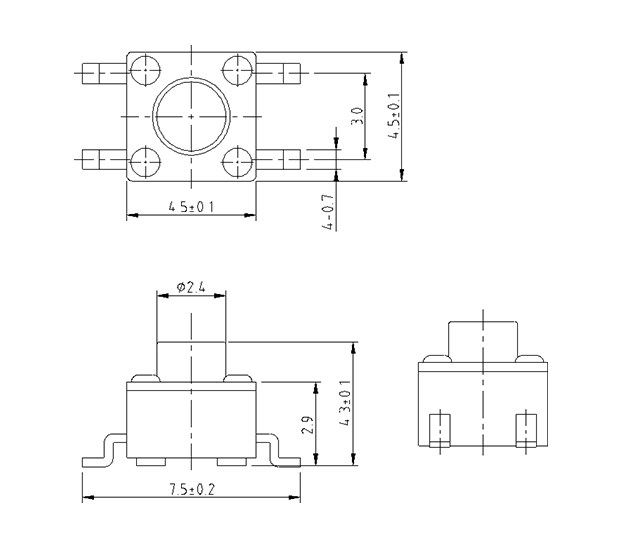

尺寸： 4.5X4.5mm

產(chǎn)品分類： 輕觸開關(guān) - C系列 / 5.2, 4.5, 4.8

Applications

※ Operating switches in all types of electronic equipment such as audio

※ Apparatus,office equipment,communication apparatus,measuring

※ Instruments,TV sets,VCRs,etc

※ Highly reliable contacts sealed structure.

※ Larger top surface of stem improves mounting speed.

※ Reflow solderable.

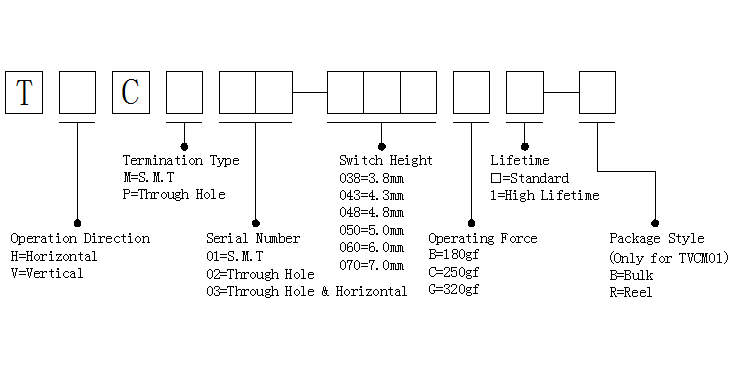

PART NO.	TYPE	Operating force	Operating direction	travel	Operating ife	Initial contact resistance	Stem height
TVCM01-038C	Surface mount	180gf	TOP push	0.25	100,000 cycles	500mN max	3.8mm

BULK：4KPCS/BULK
TAPE&REEL：2KPCS/REEL
800PCS/REEL
