輕觸開關

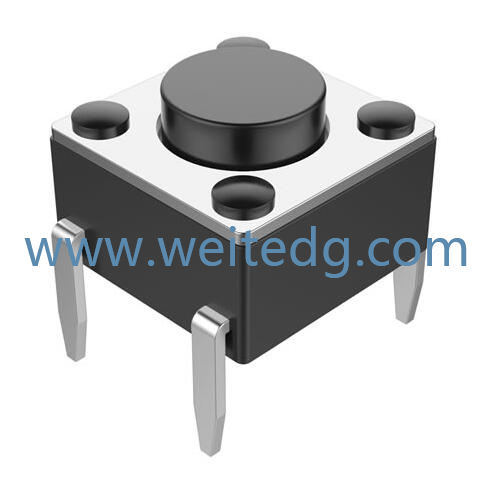

名稱：TVDJ06

詳細信息

系列： TVDJ06

特點： Top push

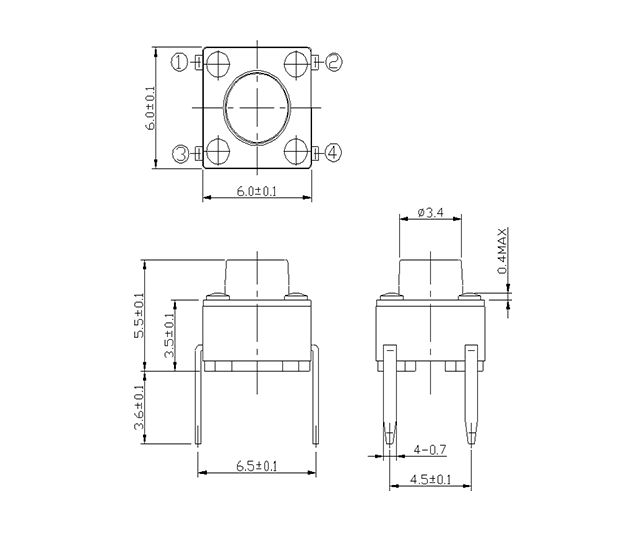

尺寸： 6.0X6.0mm

產品分類： 輕觸開關 - D系列 / 6x6

Applications

※ Operating swiches in alltypes of electronic equipment such as audio

※ Devices,office devices,communication devices,measuring

※ Instruments,TVs,video recorders,automotive sets,etc.

※ May make to order Other Terminal Shape

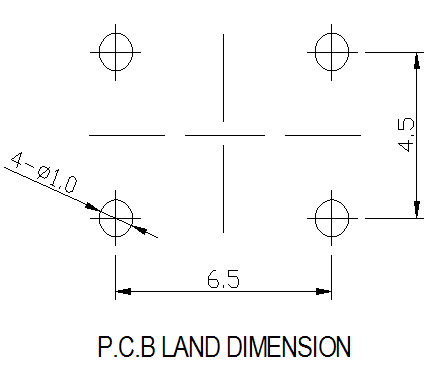

※ Snap-in type, which can be directly mounted on PC board.

※ Some of output terminals can be also used as jumper leads,thus making circuit design easy.

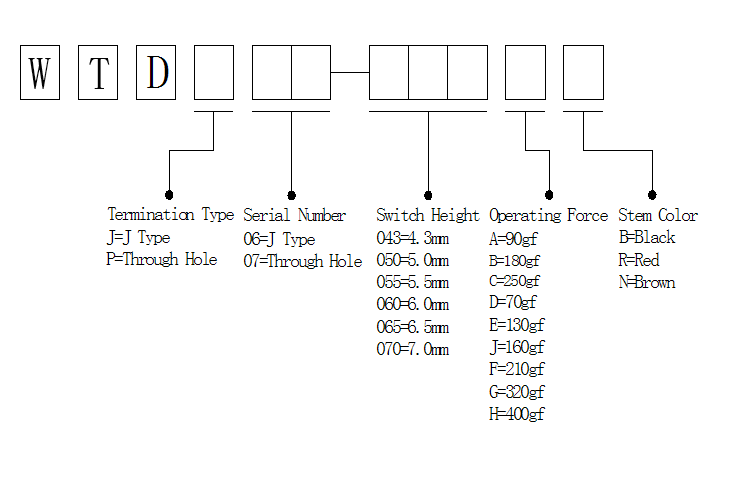

PART NO.	TYPE	Operating force	Operating direction	travel	Operating ife	Initial contact resistance	Stem height
TVDJ06-050BB2	Snap-in	180gf	Top push	0.25	100,000 cycles	500mN max	5.0mm

BULK：1KPCS/BULK
