輕觸開關

名稱：TVGP01

詳細信息

系列： TVGP01

特點： Flat Stem

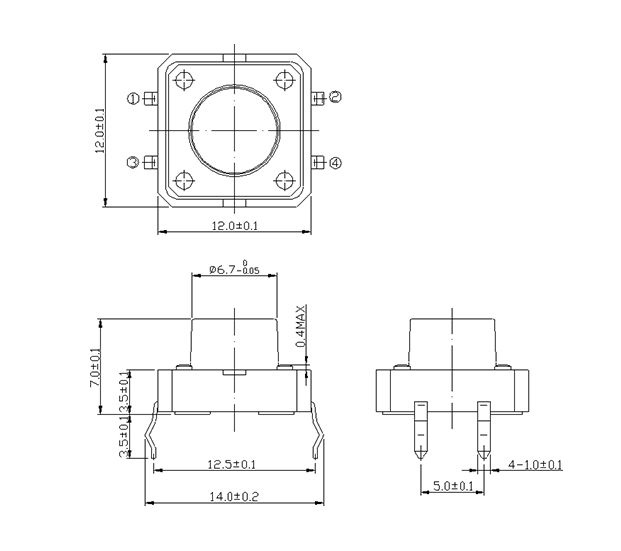

尺寸： 12.0X12.0mm

產品分類： 輕觸開關 - G系列 / 12x12

Applications

※ Operating switches in all types of electronic equipment such as audio

※ apparatus,office equipment,communication apparatus,measuring

※ instruments,TV sets,VCRs,etc.

※ Snap-in type, which can be directly mounted on PC board.

※ Some of output terminals can be also used as jumper leads, thus

※ Making circuit design easy.

※ Standard knobs are available.

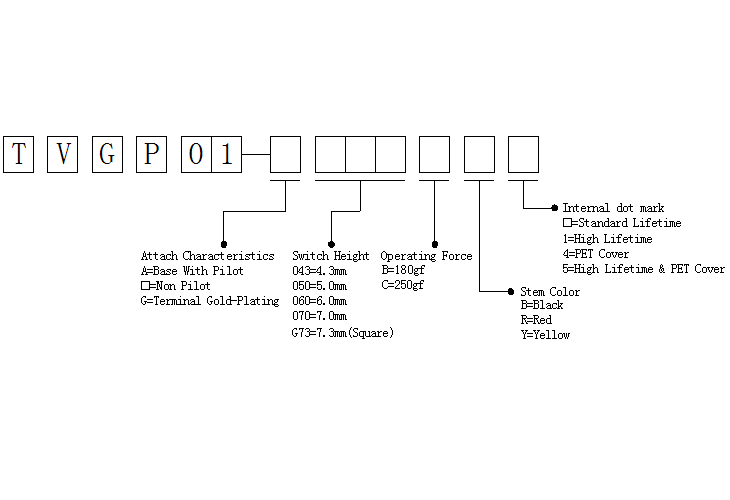

PART NO.	TYPE	Operating force	Operating direction	travel	Operating ife	Initial contact resistance	Stem height
TVGP01-100BB	Snap-in	180gf	Top push	0.25	100,000 cycles	500mN max	10mm

BULK：500PCS/BULK
