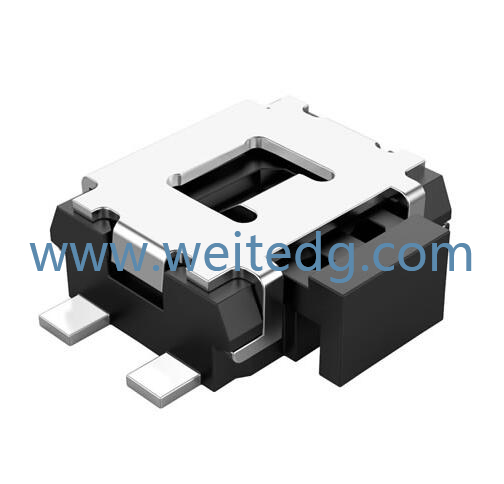

系列： THAF01

特點： Horizontal Push

尺寸： 3.5x3mm

產品分類： 輕觸開關 - A系列 / MINI型

Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices

Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.

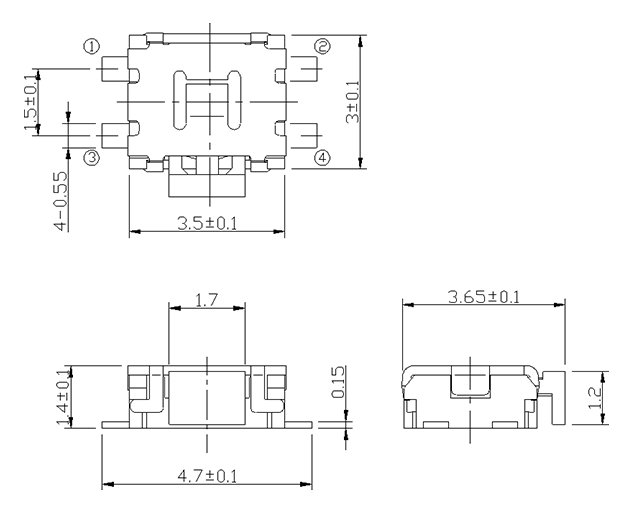

Dimensions

PCB layout

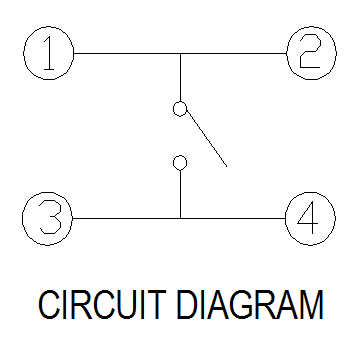

Circuit diagram

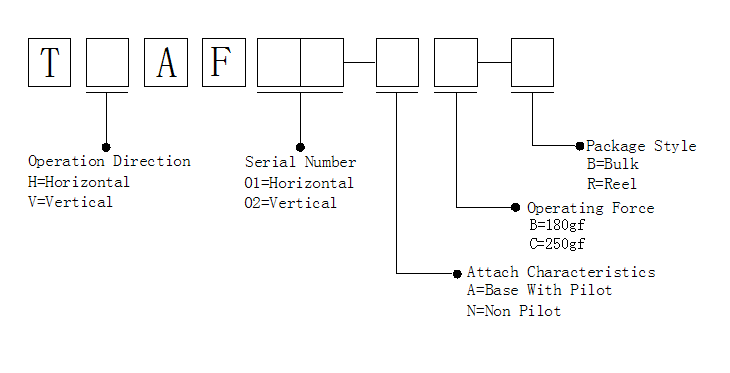

HOW TO ORDER

PRODUCT LINE PART NO. TYPE Operating force Operating direction travel Operating ife Initial contact resistance Stem height THAF01-NC Surface mount 250gf Side push 0.13 100,000 cycles 500mN max 1.4mm

Package
